Excavator
ZX300LC-7H
Unleash unparalleled power and precision with the Hitachi ZX300LC-7H Hydraulic Excavator, a machine meticulously engineered to meet the highest standards of the construction and mining industries. Whether you are undertaking large-scale excavation projects, managing complex terrain, or handling heavy loads, the ZX300LC-7H is your go-to solution for robust and efficient operations.
Product Documents
Product Highlights
- Powerful Performance: Powered by an Isuzu 6HK1X engine with a net rated power of 249 hp (186 kW) at 1,900 rpm. Meets EPA Final Tier 4 and EU Stage IV emissions standards, ensuring environmental compliance and fuel efficiency. Delivers a maximum torque of 774 lbf (1,050 Nm) at 1,500 rpm for demanding tasks.
- Advanced Hydraulics: Features three variable displacement axial piston pumps with a maximum oil flow of 62 gal/min (236 L/min) and 55 gal/min (210 L/min). Includes auto power lift, power boost, and hose rupture valves for enhanced safety and performance.

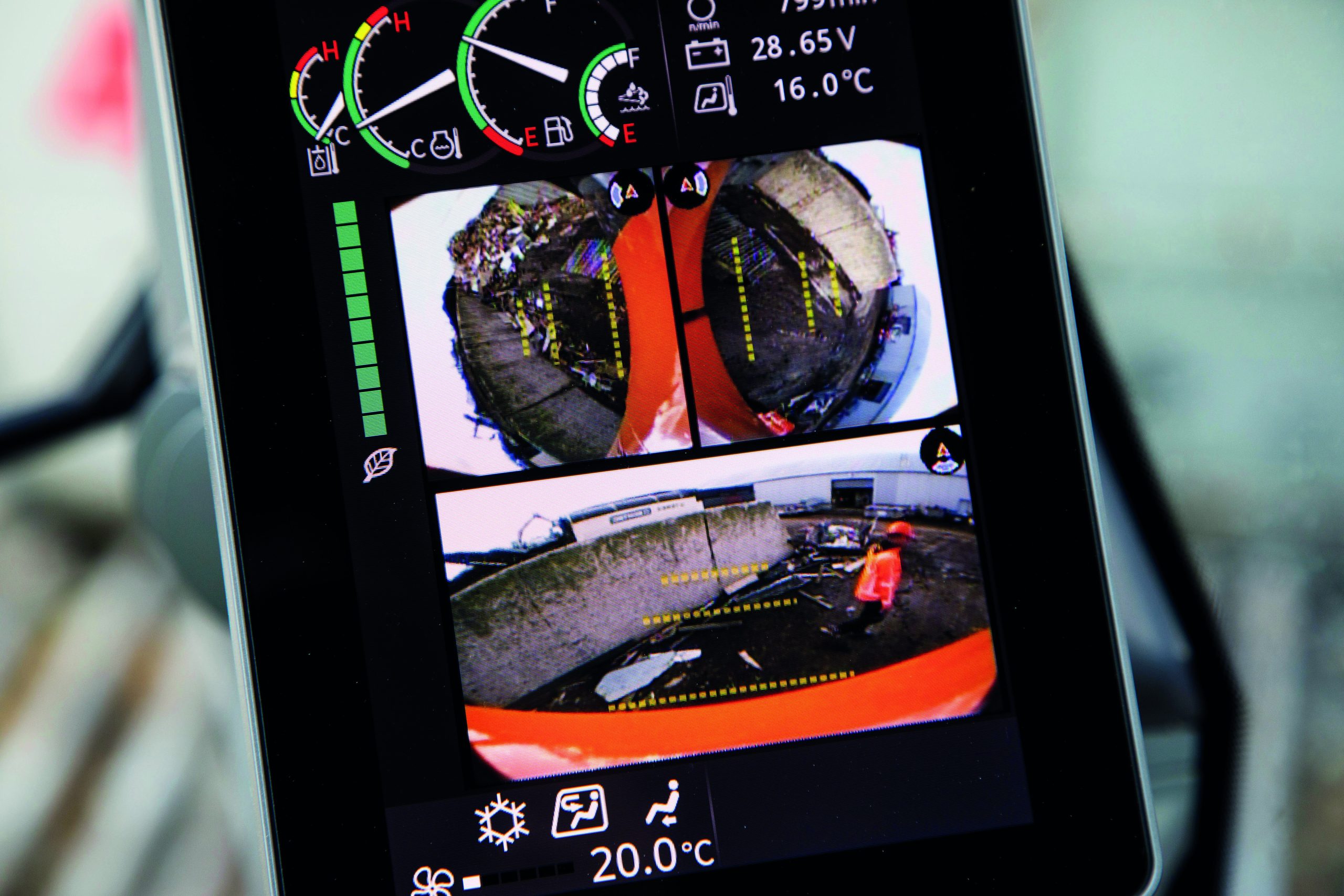

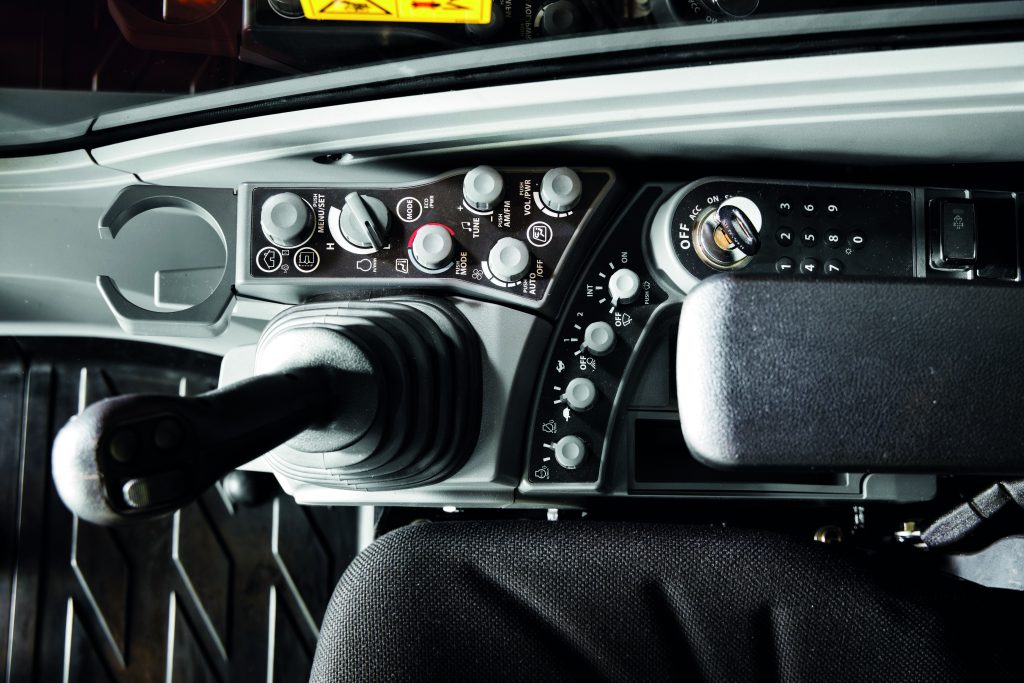

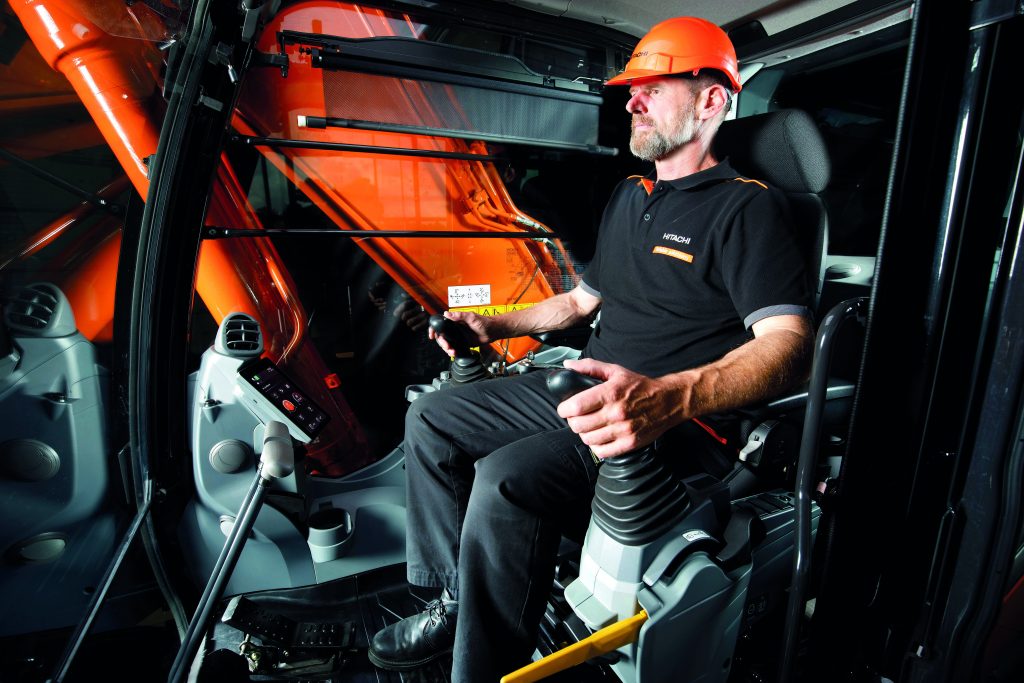

- Operator Comfort: State-of-the-art cab with an air suspension seat, heater, and ergonomic controls for maximum comfort. Equipped with an 8-inch monitor and intuitive control systems for improved productivity.
- Durability and Reliability: Built with a D-section frame and high-quality components for long-term durability. Reinforced bucket links, centralized lubrication systems, and high mesh full flow filters ensure reliable performance.
Specifications
| Engine | Isuzu 6HK1X |
| Net Power | 249 hp (186 kW) at 1,900 rpm |
| Operating Weight | 68,784 – 69,005 lb (31,200 – 31,300 kg) |
| Max Dig Reach | 36′ 12″ (11,270 mm) |
| Max Dig Depth | 25′ 10″ (7,870 mm) |
| Swing speed | 10.3 rpm |
| Arm Force (ISO) | 32,372 lbf (144 kN) |
| Bucket Force (ISO) | 45,411 lbf (202 kN) |
