CreteMaster – Diesel & Battery Electric Concrete Mixer Trucks
Diesel & Battery Electric Concrete Mixer Trucks for Underground Mining
RDH-Scharf CreteMasters are compact concrete transport utility machines that ensure safe and effective operation. All CreteMasters are equipped with speed-variable rotating drums with internal flights, secure and easily accessible filling hatches and adjustable discharging heights. Various options for form-oil tanks, accelerator systems and washings systems can be included to improve productivity.
Optional Offerings on All Cretemasters
- Enclosed Cabin and Air Conditioning
- 24V Hydraulic Oil Transfer Pump
- Reverse Camera and Additional Screen
- Lincoln Automatic Grease Lubrication System
- Ansul A101/LVS Fire Suppression System
- Remote Emergency Brake Release Kit
- High pressure washer with tank
- Admixture system with tank
- Drum Chute
Optional Offerings on CreteMaster 600 EB
- Extra Batteries
- High Speed DC Charger
Specifications
| Dimensions | Units | CreteMaster 500 N | CreteMaster 600 D | CreteMaster 600 EB |
|---|---|---|---|---|
| Drum Size | m³ | 4,4 | 5,8 | 5,8 |
| Rotation Speed | rpm | 0-13 | 0-13 | 0-13 |

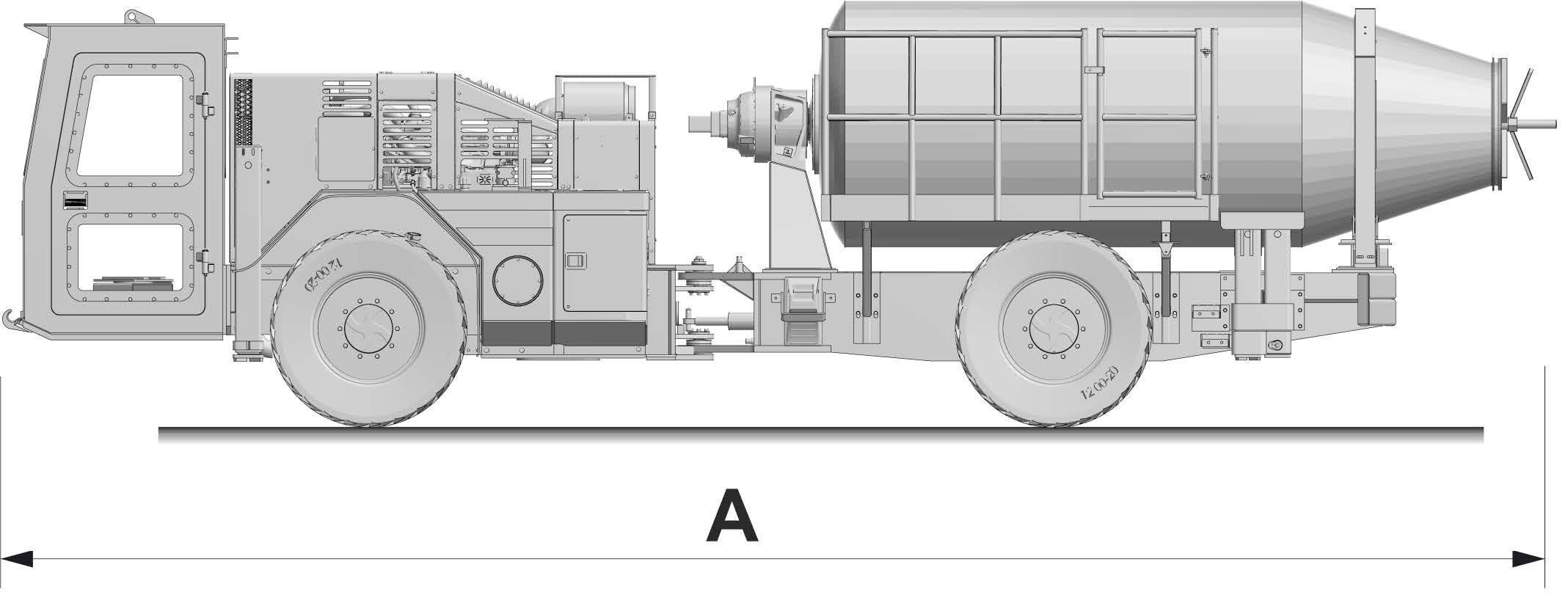

| Length (A) | mm | 8100 | 9200 | 8900 |

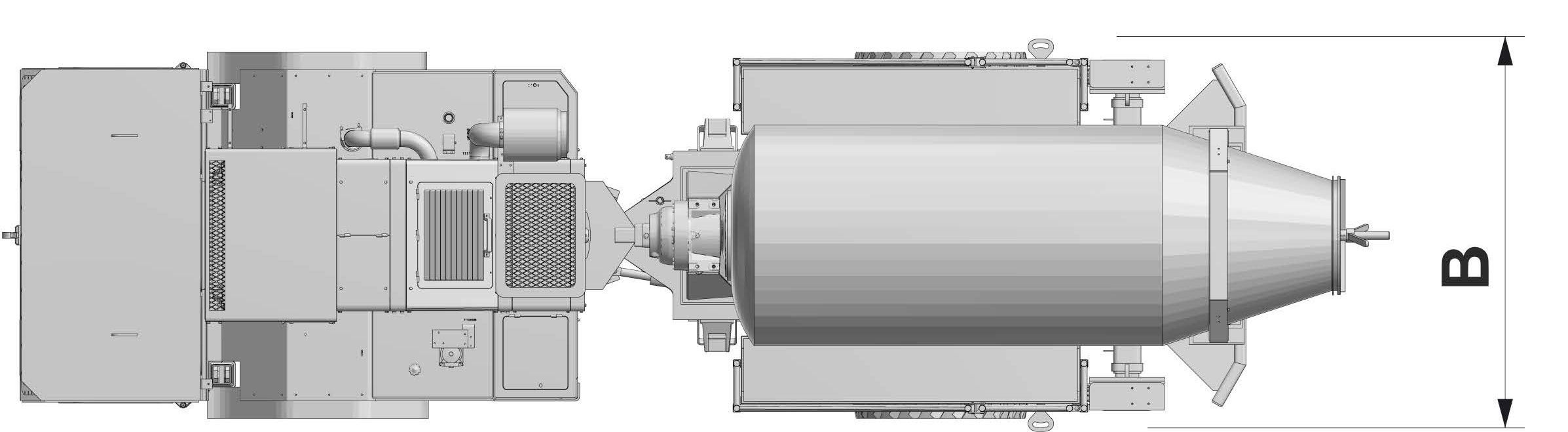

| Width (B) | mm | 2200 | 2350 | 2350 |
| Height (C) | mm | 2400 | 2600 | 2600 |
| Weight | kg | 15200 | 16150 | 17260 |
| Inner Turning Radius | mm | 4600 | 4330 | 4330 |
| Outer Turning Radius | mm | 6960 | 7150 | 7140 |
| Ground Clearance (D) | mm | 290 | 300 | 300 |
