Compact Excavator
ZX60USB-5N

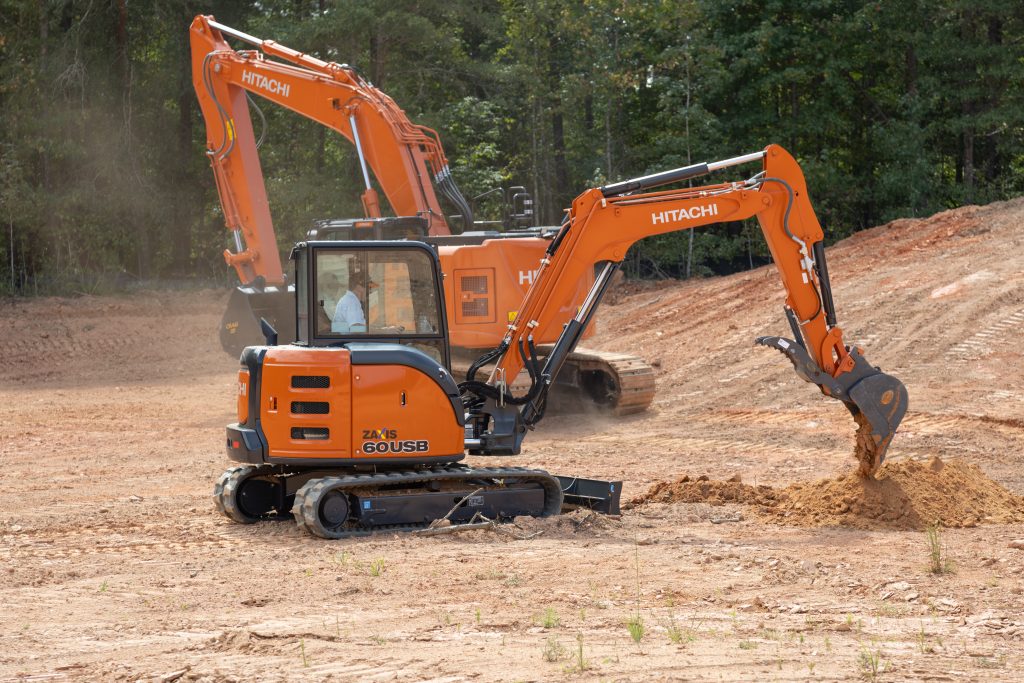

The ZX60USB-5N bridges the gap between the ZX50U-5N compact and the ZX75US-5N mid-sized excavators. With its reduced-tail-swing design, this compact, yet powerful excavator is perfect for work in congested or confined areas.
Product Highlights
- The Yanmar diesel engine meets EPA Final Tier 4 (FT4)/EU Stage IV emission regulations. It’s easy to maintain and requires no special additional fluids – just ultra-low-sulfur diesel fuel and CJ-4 engine oil.
- The rubber tracks traverse virtually any terrain, including paved surfaces.
- Heavy-duty X-frame provides a solid, stable platform that resists material and dirt build-up.
- Standard quick-coupler equipped boom-mounted auxiliary hydraulic lines make attachment hook-up a snap. Wedge-style coupler enables quick changes and a wide variety of buckets and attachments, such as breakers and augers.
- Heavy-duty shields deflect material and impacts, protecting the boom/blade cylinders and drive motors.
Product Documents
Specifications
| Engine | Yanmar 4TNV98C |
| Net Power | 39.6 kW (53 hp) at 2,000 rpm |
| Operating Weight | 6145 kg (13,547 lb) |
| Max Dig Reach | 6.23 m (20 ft 5 in) |
| Max Dig Depth | 3.77 m (12 ft 4 in) |
| Swing Speed | 9.5 rpm |
| Arm Force | 27.0 kN (6,063 lb) |
| Bucket Force | 41.1 kN (9,237 lb) |
